This is one of those pesky errors that I keep stumbling across, and every time It pops up, I forget how to fix it, so I am going to document it once and for all so that I can at easily find the fix for it.

When adding a ESXi transport node into NSX-T and wanting to configure the vmk uninstall mappings (to handle removing the NSX-T VIBs and migrating the VMKernel interfaces back to a VSS/VDS), the following error sometimes appears.

If your trying this operation via the API, this is what the error will look like

{
  "httpStatus": "BAD_REQUEST",
  "error_code": 9417,
  "module_name": "NsxSwitching service",
  "error_message": "The host [05610188-d013-40b3-8176-4c4a915ca5b0] is missing portgroup [VLAN_109_Management_Ephemeral] found in the transport node configuration."
}

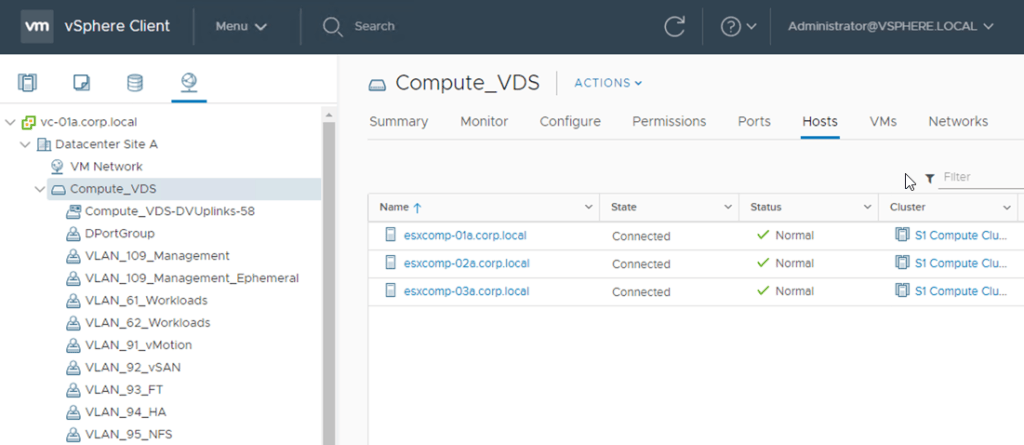

Taking a look in vCenter confirms that it does exist…

So why does NSX-T complain that it doesn’t exist?

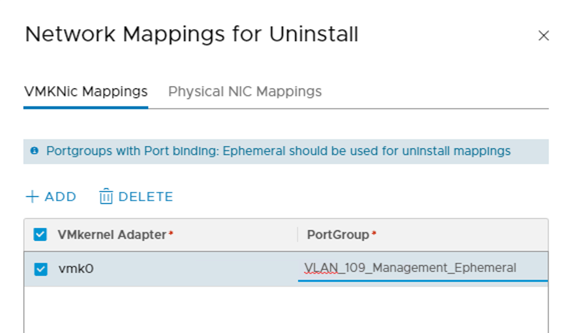

When configuring the Uninstall Mapping, the portgroup is entered into a free text field as shown below

Now when clicking Finish on the Add Transport Node wizard, NSX-T will check to see if the port group exists.

If the port group entered is a VSS port group, everything will be OK as NSX-T will check the port group exists on the host directly by using the credentials supplied in the Add Transport Node wizard for connecting to the host.

If the port group entered is a VDS port group (like this example), rather than checking the host directly, NSX-T will need to check vCenter if the port group exists, as a VDS port group is a vCenter managed construct.

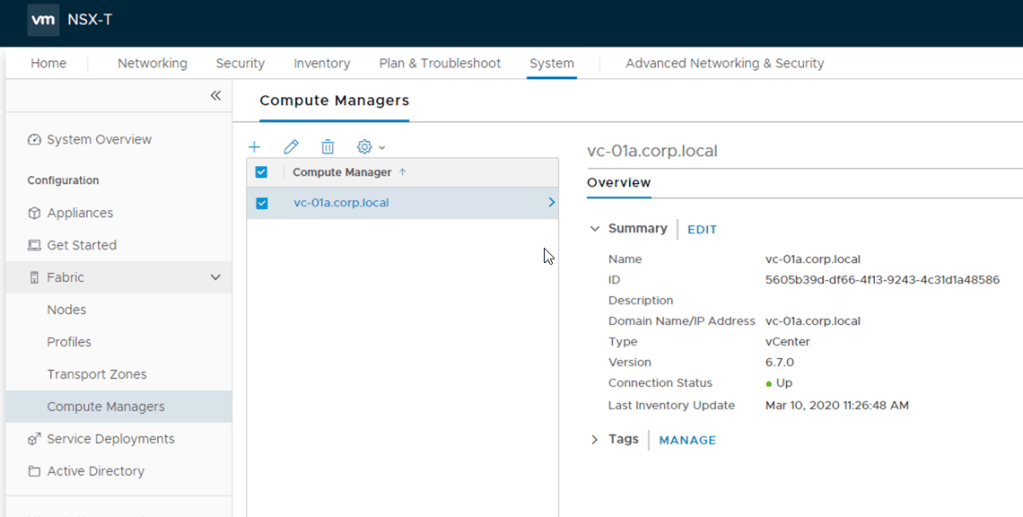

To facilitate checking vCenter, NSX-T needs to have the vCenter added as a Compute Manager, and this is the step that is often missed.

But even with vCenter added a compute manager, the error was still appearing.

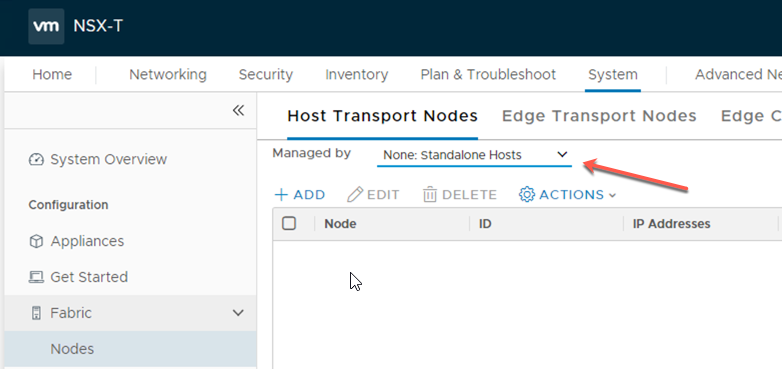

As it turns out, if you are manually adding a ESXi Transport Node (Managed By: None: Standalone Hosts), it does not appear to use the compute manager to check the port groups available on the host.

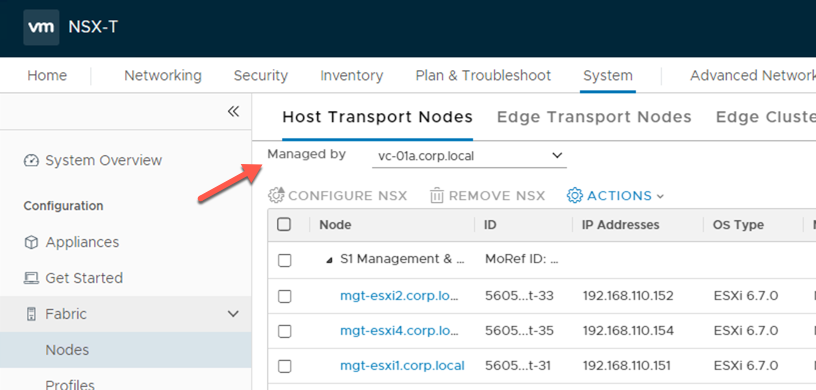

If you need to specify a VDS Portgroup, when configuring the transport node, make sure a compute manager is configured, AND it’s being configured from via a Transport Node Profile, or being added from the Managed By: Compute-Manager-Name section.

As for the ultimate question about whether this is working as intended, that’s a question that I don’t have an answer to at the moment, but I will be looking into it, as I seem to trip over this one a lot.
